LU-2S
Hold Rating: 800 lbs.

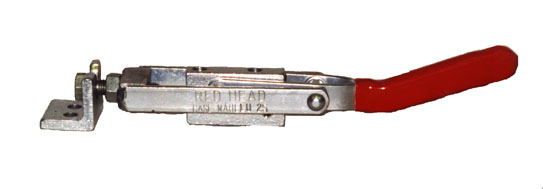

This is our smallest latch clamp and it comes complete with the catch shown. Both the clamp and catch mount with 1/4" bolts. Its compact size allows it to fit into tight places.
| Pricing | Qty 1-99 | Qty 100+ |
| LU-2S | $9.77 | $8.87 |
 | |||
| |||
| |||
Product Dimensions | |||
| |||
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LU-2S | 3.75 | 1.25 | 1.31 | 0.25 | 1.00 | 0.50 | 2.19 | 1.00 | 1.75 | 0.26 | 6.56 | 0.70 | 0.63 | 1.10 | 800 | 1.00 | 1.55 | 600 |
All dimensions are in inches unless otherwise noted.
