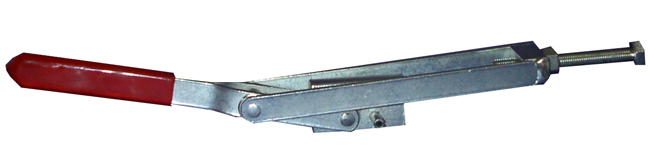

LU-2W
Hold Rating: 800 lbs.
This is our most popular latch clamp. It mounts with two 1/4" bolts through the holes provided or may be welded in place. The LU-2W has a welded cross bar with a threaded hole that allows mounting a bolt for adjustment of the clamping pressure.
| Pricing | Qty 1-99 | Qty 100+ |
| LU-2W | $10.19 | $9.40 |
 | |||
| |||
| |||
Product Dimensions | |||
| |||
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LU-2W | 5.69 | 1.25 | 3.25 | 0.25 | 1.00 | 0.50 | 3.19 | 1.00 | 1.75 | 0.26 | 9.50 | 0.70 | 0.63 | 2.38 | 800 | 1.00 | 1.63 | 750 |
All dimensions are in inches unless otherwise noted.
