375R
Hold Rating: 4000 lbs.

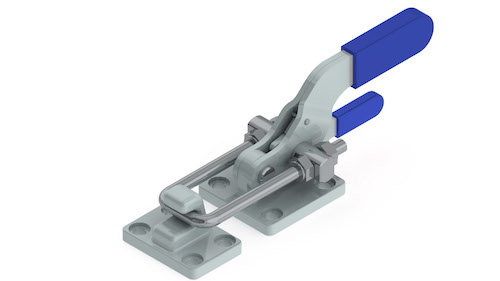

A heavy-duty horizontal toggle latch clamp that features a special catch to hold the clamp in the clamped position to reduce unexpected opening. A mating hook is available at additional cost. The clamp is zinc plated, with a blue vinyl grip.
| Pricing | Qty 1-99 | Qty 100+ |
| 375R | $55.00 | $49.00 |
 | |||
| |||
| |||
Product Dimensions | |||
| |||
| Model | A | B | C | D | E | F | F1 | G | H | J | K | N | O | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 375R | 3.5 | 10min. | 1.38 | 2.25 | 2.25 | 3.37 | N/A | 3.17 | 2.22 | 0.394 | 1.86 | 0.43 | 1.2 | 5.6-7.25 |
All dimensions are in inches unless otherwise noted.
