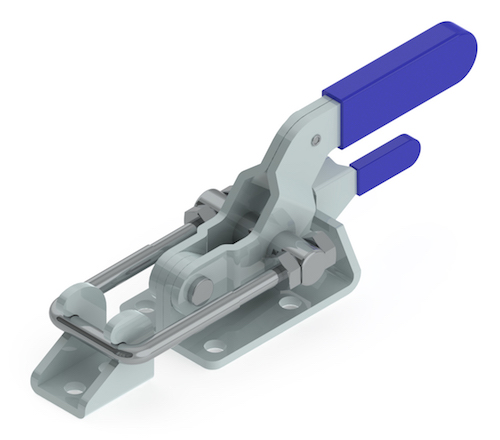

341R
Hold Rating: 2000 lbs.
A medium-duty horizontal toggle latch clamp that features an included hook mating part and special catch to hold clamp in the clamped position to reduce unexpected opening. The clamp is zinc plated, with a blue vinyl grip.
| Pricing | Qty 1-99 | Qty 100+ |
| 341R | $33.00 | $29.00 |
 | |||
| |||
| |||
Product Dimensions | |||
| |||
| Model | A | B | C | D | E | F | F1 | G | H | J | K | N | O | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 341R | 2.89 | 7.75min. | 0.75 | 1.63 | 1.5 | 2.34 | 3.27 | 2.15 | 1.5 | 0.34 | 1.75 | 0.31 | 0.94 | 5.0-5.7 |
All dimensions are in inches unless otherwise noted.
