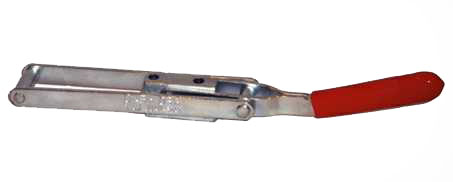

LU-2

Hold Rating: 800 lbs.

This is our most popular latch clamp. It mounts with two 1/4" bolts through the holes provided or may be welded in place. This clamp may be mounted over a slot to allow adjustment.

PricingQty 1-99Qty 100+
LU-2 $9.14 $8.35
2-D AutoCAD Drawing File lu-2.dwg
Product Dimensions


ModelABCDEFGHIJKLMNOP QR
LU-2 5.69 1.25 3.25 0.25 1.00 0.50 3.19 1.00 1.75 0.26 9.50 0.70 0.63 2.38 800 1.00 1.63 750

All dimensions are in inches unless otherwise noted.
